Safety Labels

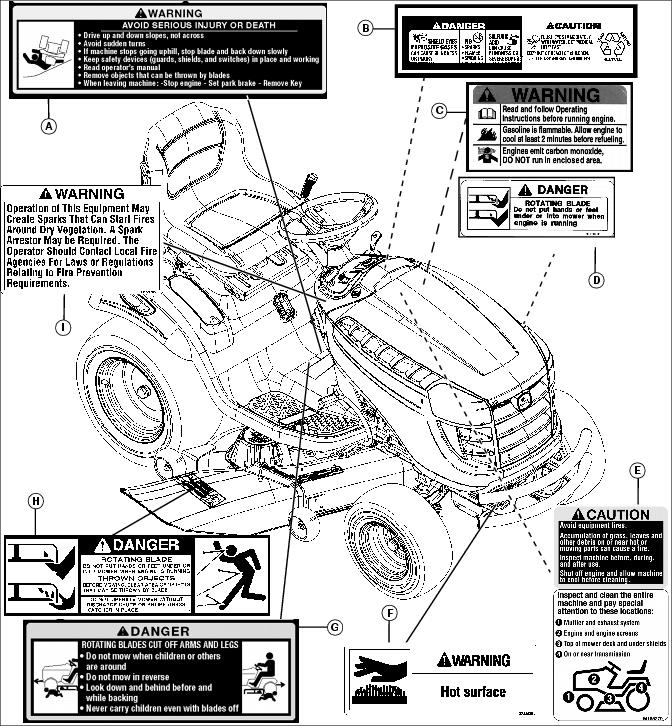

Safety Label Location (Text)
Picture Note: Use label number listed in table below to locate complete text of safety label message following this illustration.

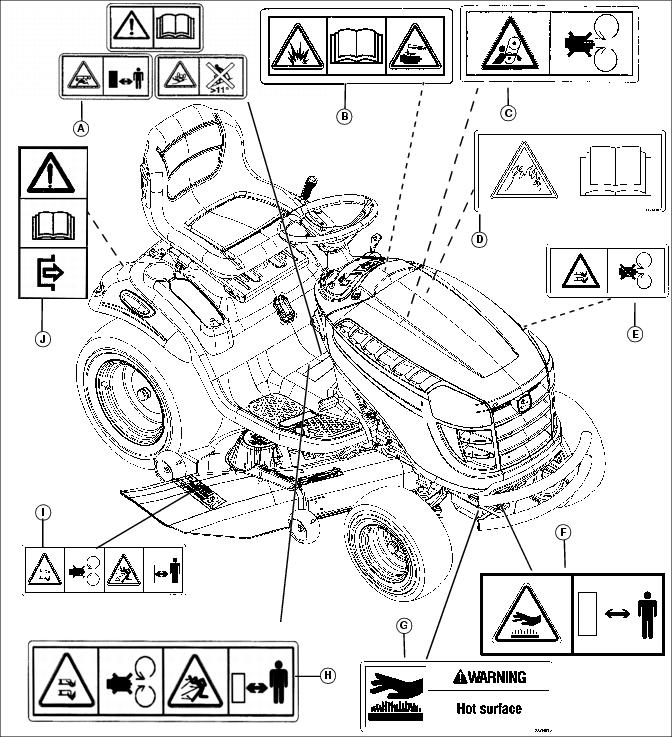

Safety Label Location (No Text)
Picture Note: Non-text labels are required for certain regions of the world. Your machine may not be equipped with these labels. Use label number listed in table below to locate complete text of safety label message following this illustration.

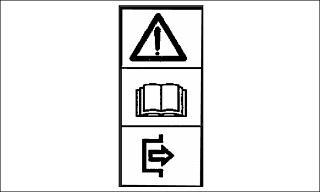

J - WARNING (Bypass Lever) GX21086
Understanding The Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards.
The operator’s manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol.
There can be additional safety information contained on parts and components sourced from suppliers that is not reproduced in this operator’s manual.

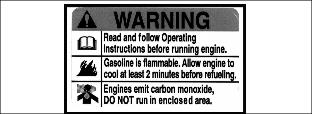

Warning
Picture Note: This label appears on Briggs and Stratton engines only.
• Read and follow Operating Instructions before running engine.
• Gasoline is flammable. Allow engine to cool at least 2 minutes before refueling.
• Engines emit carbon monoxide, DO NOT run in enclosed area.
DANGER
ROTATING BLADE
• Do not put hands or feet under or into mower when engine is running.
DANGER - M89504
ROTATING BLADE
• Do not put hands or feet under or into mower when engine is running.
THROWN OBJECTS
• Before mowing, clear area of objects that may be thrown by blade.
• Do not operate mower without discharge chute or entire grass catcher in place.
DANGER
ROTATING BLADES CUT OFF ARMS AND LEGS
• Do not mow when children or others are around.
• Look down and behind before and while backing.
• Never carry children even with blades off.
DANGER M128699
Picture Note: Located on battery
• Shield eyes, explosive gases can cause blindness or injury.
• Sulfuric acid can cause blindness or severe burns.
• Flush eyes immediately with water. Get medical help fast.
• Keep out of reach of children.
• Keep vent caps tight and level.
WARNING
AVOID SERIOUS INJURY OR DEATH
• Drive up and down slopes, not across.
• If machine stops going uphill, stop blades and back down slowly.
• Keep safety devices (guards, shields, and switches) in place and working.
• Remove objects that could be thrown by blades.
• Remove objects that can be thrown by blades
block - DANGER GX23479
Warning M159705
Picture Note: This label is required and installed on machines sold in California. This label may also be installed on machines sold in other locations.
Operation of This Equipment May Create Sparks that Can Start Fires Around Dry Vegetation. A Spark Arrestor May be Required. The Operator Should Contact Local Fire Agencies For Laws or Regulations Relating to Fire Prevention Requirements.
Prevent Equipment Fires
• Accumulation of grass, leaves and other debris on or near hot or moving parts can cause a fire.
• Inspect machine before, during, and after use.
• Shut off engine and allow machine to cool before cleaning.
Inspect and clean the entire machine and pay special attention to these locations:
3. Top of mower deck and under shields
Emission Control System Certification Label
NOTE: Tampering with emission controls and components by unauthorized personnel may result in severe fines or penalties. Emission controls and components can only be adjusted by EPA and/or CARB authorized service centers. Contact your John Deere Commercial and Consumer Equipment Retailer concerning emission controls and component questions.
The presence of an emissions label signifies that the engine has been certified with the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB).
The emissions warranty applies only to those engines marketed by John Deere that have been certified by the EPA and/or CARB; and used in the United States and Canada in off-road mobile equipment.
Emission Compliance Period
If your engine has the emission compliance category listed on the emission control system certification or air index label, this indicates the number of operating hours for which the engine has been certified to meet EPA and/or CARB emission requirements. The following table provides the engine compliance period in hours associated with the category found on the certification label.
Certification
Your mower has been certified for compliance with American National Standards Institute B-71.1-2003, “Safety Specifications” for Power Lawn Mowers, Lawn and Garden Tractors, and Lawn Tractors.
Canadian Electromagnetic Compatibility (EMC) Compliance
This spark ignition system complies with Canadian ICES-002.
Pictorial Safety Signs
At several important places on this machine safety signs are affixed intended to signify potential danger. The hazard is identified by a pictorial in a warning triangle. An adjacent pictorial provides information how to avoid personal injury. These safety signs, their placement on the machine and a brief explanatory text are shown in this Safety section.
There can be additional safety information contained on parts and components sourced from suppliers that is not reproduced in this operator’s manual.

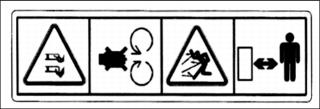

Avoid Injury From Rotating Blades and Thrown Objects - M118040
• Do not put hands or feet under or into mower when engine is running.
• Do not operate mower without discharge chute or entire grass catcher in place.
• Before mowing, clear area of objects that may be thrown by blade.
• Stay clear while engine is running.
Avoid Injury From Rotating Blades - M118041
• Do not put hands or feet under or into mower when engine is running.
• Do not operate mower without discharge chute or entire grass catcher in place.

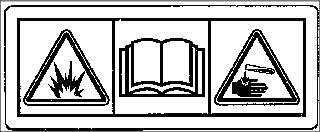

WARNING M128484
Avoid Injury From Battery Gases and Acids
• Batteries contain explosive gases and sulfuric acid. Use extreme caution when handling battery.
• Read operator’s manual for all safety information before handling battery.
• Use extreme caution when handling battery.
Avoid Injury From Getting Caught in Belt - M136436
• Do not operate mower without shields in place.
Label FH309021 Warning
Clean and inspect the entire machine.
Carefully read Operator’s Manual Machine Cleanout section for details.
WARNING GX21121
Warning - Hot Surfaces
• Keep away from hot surfaces.

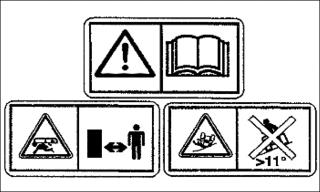

WARNING - GX23479
Avoid Injury
Picture Note: Located on fenderdeck in front of seat.
Read Operators Manual
• This operator’s manual contains important information necessary for safe machine operation. Observe all safety warnings to avoid accidents.
Keep Children Away From Mower
• Do not mow when children or others are around.
• Look down and behind before and while backing.
• Never carry children even with blades off.
Avoid Injury From Tipping
• Do not drive where tractor could slip or tip. Do not drive on slope with more than a 11? (19%) incline.
• Drive up and down slopes, not across.
Avoid Injury From Rotating Blades and Thrown Objects
• Do not put hands or feet under or into mower when engine is running.
• Keep away from rotating parts. Do not open or remove safety shields while engine is running.
• Thrown Objects - Before mowing, clear area of objects that may be thrown by blade. Do not operate mower without discharge chute or entire grass catcher in place.
• Stay a safe distance from machine.
Avoid Injury: Use Transmission Bypass Valve Lever Safely
• Carefully read operator’s manual for safe operation of transmission bypass valve lever.
